Ocean City Beach Concert Staging: A Coastal Weather Engineering Guide

The Geotechnical Challenge of Sand Foundations

Beach sand has a notoriously low load-bearing capacity that drops even further when saturated by high-tide groundwater. If stage riggers placed heavy aluminum truss towers directly onto the sand berm, the enormous downward weight would cause uneven settling within hours. Catastrophe follows uneven settling. To overcome this fundamental limitation, production teams install multi-layered ground protection systems across the entire performance area.

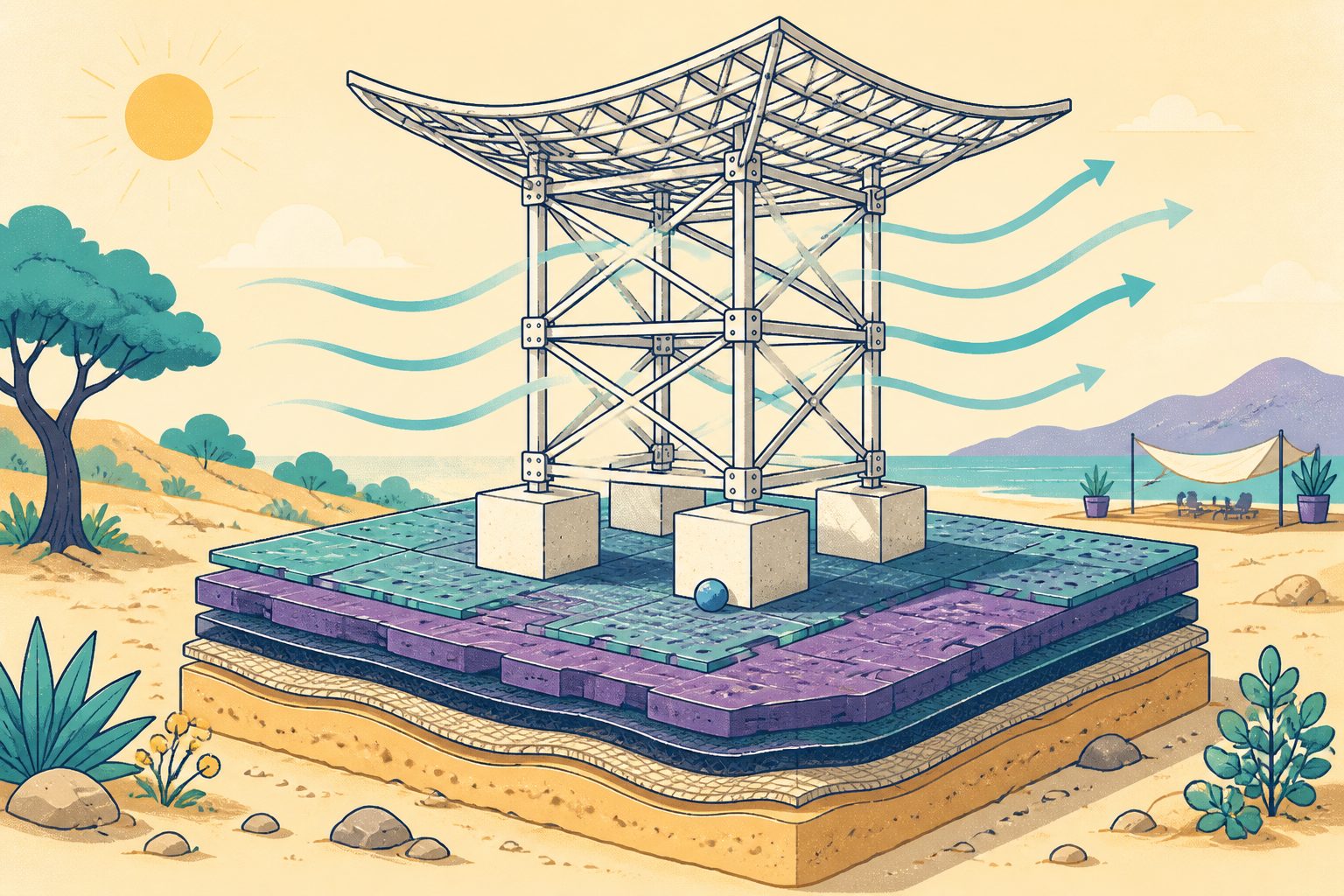

Crews lay interlocking high-density composite track mats across the backstage footprint. These heavy-duty polymer panels act as a floating foundation. They distribute thousands of pounds of concentrated vertical load across a broad surface area, preventing heavy support legs from sinking into soft sand. Underneath primary lighting and audio towers, engineers place massive steel spreader plates to maintain level alignment throughout three days of intense patron foot traffic.

These modular panels also create dedicated equipment runways. Heavy forklift trucks transporting sensitive sound mixers, amplifiers, and lighting fixtures can roll smoothly across the beach without digging destructive ruts into wet sand. The composite matting functions like an engineered temporary highway. It shields buried electrical conduits from crushing pressure and keeps vital production pathways bone-dry.

ANSI E1.21 Standards and Ballast Counterweights

Because temporary beach stages cannot use permanent concrete pilings driven deep into coastal bedrock, they depend entirely on gravity-based deadweight ballast. We checked the ANSI E1.21-2024 standards for temporary ground-supported overhead structures. The rulebook is strict. Outdoor concert stages must withstand severe lateral wind loads without overturning, sliding, or suffering joint failure.

Engineers deploy pre-cast concrete kentledge blocks and industrial steel water tanks linked by high-tensile steel guy cables. Each primary stage wing is counterweighted with tens of thousands of pounds of deadweight ballast placed directly behind the acoustic arrays. This massive counterweight anchors the entire framework against sudden 45-mile-per-hour ocean gusts sweeping across the inlet. Weight creates safety.

Anemometer Telemetry and Action Thresholds

Real-time anemometer telemetry guides site safety directors through predetermined operational thresholds. Dual ultrasonic wind sensors mounted on the highest roof cantilevers transmit live gust data directly to the production control desk. Precision matters. When sustained winds reach 25 miles per hour, crews immediately secure all perimeter scrims. At 35 miles per hour, side video walls are systematically lowered to prevent excessive drag.

If sustained winds exceed 45 miles per hour, automated chain motors lower the main roof grid into its storm lock position. This graduated protocol eliminates human guesswork during turbulent autumn squalls.

Quick-Release Canopies and Blow-Through Scrims

A concert stage's roof canopy and rear video walls act like giant sails in high winds. At 40 miles per hour, wind generates roughly 10 pounds of lateral force per square foot against solid surfaces. Across a 60-foot festival proscenium, that translates into tons of dangerous structural drag. Force multiplies fast.

To prevent uplift, modern festival structures employ quick-release roof skins and porous blow-through speaker scrims. In under four minutes, stage hands can detach tensioned roof panels along specialized rip-tracks, allowing ocean gales to pass freely through the open truss grid rather than lifting it. Sound flows through effortlessly. I find this mechanical design brilliantly effective: rather than fighting the storm, the structure lets the wind pass harmlessly through while keeping sound gear secure.
